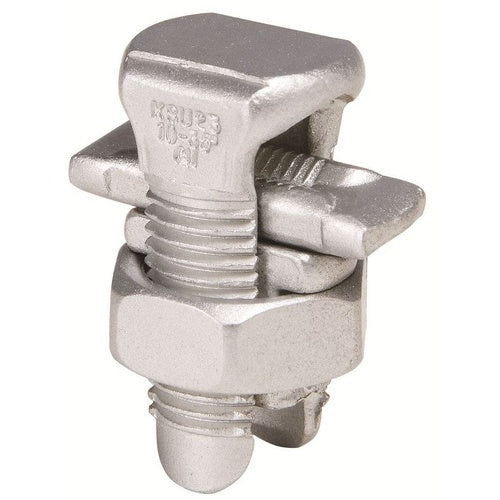

Burndy KSU-23 2Str Copper/Aluminum Split Bolt

Overview

Burndy KSU-23 2Str Copper/Aluminum Split Bolt

Product Specifications

• UPC: 78181003600
• Maximum Tap Conductor Size: 2 AWG Solid (Copper/Aluminum), 2 AWG (ACSR/AAAC 5005)
• Material: Tin Plated Copper
• Approval: UL, CSA
• Catalog Number: KSU23
• Brand Name: UNIVERSAL SERVIT[R]
• Model: KSU
• Installation: Split Bolt
• Conductor Material: Copper/Aluminum/ACSR/AAAC/5005
• Minimum Run Conductor Size: 8 AWG Solid (Copper/Aluminum), 3 AWG (ACSR/AAAC 5005)
• Maximum Run Conductor Size: 2 AWG Solid (Copper/Aluminum), 2 AWG (ACSR/AAAC 5005)
• Minimum Tap Conductor Size: 8 AWG Solid (Copper/Aluminum), 6 AWG (ACSR/AAAC 5005)
• Catalog Description: TIN-PLATED, HIGH STRENGTH COPPER ALLOY SERVIT WITH SPACER. SPACER SEPERATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH THAT PREVENTS HIGH PRESSURE POINT CONTACTS BETWEEN RUN AND TAP CONDUCTORS, 1.48 IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; 8 AWG Solid (Copper/Aluminum), 3 AWG (Acsr/Aaac 5005) min. Run Conductor Size; 2 AWG Solid (Copper/Aluminum), 2 AWG (Acsr/Aaac 5005) Max. Run Conductor Size; 8 AWG Solid (Copper/Aluminum), 6 AWG (Acsr/Aaac 5005) min. Tap Conductor Size; 2 AWG Solid (Copper/Aluminum), 2 AWG (Acsr/Aaac 5005) Max. Tap Conductor Size; Split Bolt Installation; Copper/Aluminum/Acsr/Aaac/5005 Conductor Material; UL, CSA Approval; Universal SERVIT[R] Brand; KSU Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810036006
• SKU Name: bur ksu23
