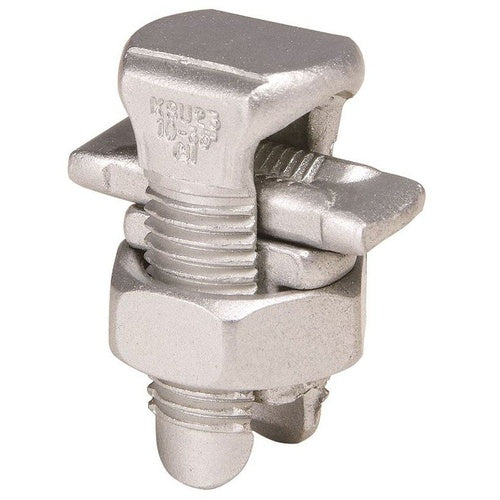

Burndy KSU25 1/0Awg Split Bolt Connector

Overview

Burndy KSU25 1/0Awg Split Bolt Connector

Product Specifications

• UPC: 78181003625
• Maximum Tap Conductor Size: 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (ACSR/AAAC/5005)
• Material: Tin Plated Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Size 1.77 Inch L x 0.70 Inch W; Installation Torque 385 Lb-Inch; Cross Flat 0.93 Inch
• Catalog Number: KSU25
• Brand Name: UNIVERSAL SERVIT[R]
• Model: Type KSU
• Installation: Spacer
• Conductor Material: Aluminum/Copper/ACSR/AAAC/5005/Steel
• Minimum Run Conductor Size: 2 AWG Stranded (Aluminum/Copper), 3 AWG (ACSR/AAAC/5005)
• Maximum Run Conductor Size: 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (ACSR/AAAC/5005)
• Minimum Tap Conductor Size: 10 AWG Stranded (Aluminum/Copper), 6 AWG (ACSR/AAAC/5005)
• Catalog Description: TIN-PLATED, HIGH STRENGTH COPPER ALLOY SERVIT WITH SPACER. SPACER SEPERATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH THAT PREVENTS HIGH PRESSURE POINT CONTACTS BETWEEN RUN AND TAP CONDUCTORS, 1.77 IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Alloy Material; 2 AWG Stranded (Aluminum/Copper), 3 AWG (Acsr/Aaac/5005) min. Run Conductor Size; 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (Acsr/Aaac/5005) Max. Run Conductor Size; 10 AWG Stranded (Aluminum/Copper), 6 AWG (Acsr/Aaac/5005) min. Tap Conductor Size; 1/0 AWG Stranded (Aluminum/Copper), 1 AWG (Acsr/Aaac/5005) Max. Tap Conductor Size; Spacer Installation; Aluminum/Copper/Acsr/Aaac/5005/Steel Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Size 1.77 Inch L X 0.70 Inch W; Installation Torque 385 lb-Inch; Cross Flat 0.93 Inch; TYPE KSU Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810036259
• SKU Name: bur ksu25
