Overview

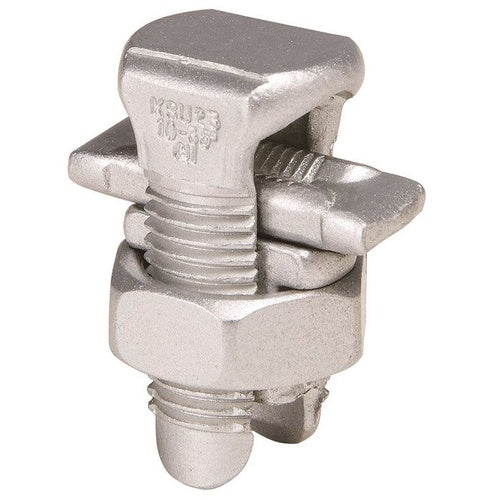

Burndy KSU-26 2/0Str Copper/Aluminum Split Bolt

Product Specifications

• UPC: 78181003660
• Minimum Tap Conductor Size: 8 AWG Stranded (Copper/Aluminum), 6 AWG (ACSR/AAAC/5005)
• Maximum Tap Conductor Size: 2/0 AWG Stranded (Copper/Aluminum), 1/0 AWG (ACSR/AAAC/5005), 7/16 Inch (Steel)
• Material: Electro Tin Plated High Strength Copper Alloy
• Approval: UL 486A
• Additional Information: RoHS Compliant; Torque Rating 385 Inch-Pound; Cross Flat 1.04 Inch
• Catalog Number: KSU26
• Brand Name: SERVIT[R]
• Model: KSU
• Type: Universal
• Installation: Spacer
• Conductor Material: Copper/Aluminum/ACSR/AAAC/5005/Steel
• Minimum Run Conductor Size: 2 AWG Stranded (Copper/Aluminum), 1 AWG (ACSR/AAAC/5005)
• Maximum Run Conductor Size: 2/0 AWG Stranded (Copper/Aluminum), 1/0 AWG (ACSR/AAAC/5005), 7/16 Inch (Steel)
• Catalog Description: TIN-PLATED, HIGH STRENGTH COPPER ALLOY SERVIT WITH SPACER. SPACER SEPERATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH THAT PREVENTS HIGH PRESSURE POINT CONTACTS BETWEEN RUN AND TAP CONDUCTORS, 1.90 IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal Type; Electro Tin Plated High Strength Copper Alloy Material; 2 AWG Stranded (Copper/Aluminum), 1 AWG (Acsr/Aaac/5005) min. Run Conductor Size; 2/0 AWG Stranded (Copper/Aluminum), 1/0 AWG (Acsr/Aaac/5005), 7/16 Inch (Steel) Max. Run Conductor Size; 8 AWG Stranded (Copper/Aluminum), 6 AWG (Acsr/Aaac/5005) min. Tap Conductor Size; 2/0 AWG Stranded (Copper/Aluminum), 1/0 AWG (Acsr/Aaac/5005), 7/16 Inch (Steel) Max. Tap Conductor Size; Spacer Installation; Copper/Aluminum/Acsr/Aaac/5005/Steel Conductor Material; UL 486A Approval; Servit [R] Brand; RoHS Compliant; Torque Rating 385 Inch-Pound; Cross Flat 1.04 Inch; KSU Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810036600
• SKU Name: bur ksu26
