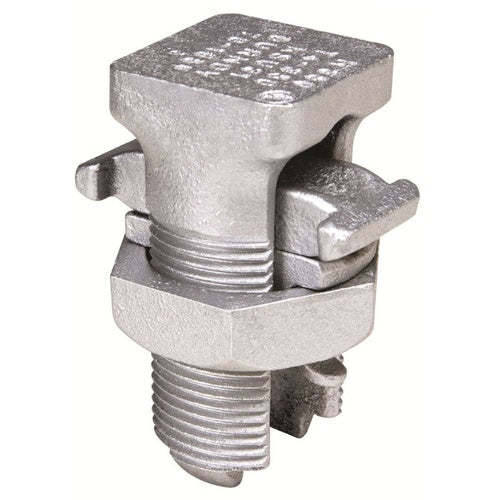

Burndy KSU31 350Mcm Split Bolt Connector

Product Specifications

• UPC: 78181003700
• Maximum Tap Conductor Size: 350 KCMIL (Aluminum/Copper), 4/0 AWG (ACSR/AAAC/5005)
• Material: Tin Plated Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Size 2.88 Inch L x 1.36 Inch W; Installation Torque 650 Lb-Inch; Cross Flat 1.69 Inch
• Catalog Number: KSU31
• Brand Name: SERVIT[R]
• Model: KSU
• Installation: Spacer
• Conductor Material: Aluminum/Copper/ACSR/AAAC/5005/Steel
• Minimum Run Conductor Size: 1/0 AWG Stranded (Aluminum/Copper), 3/0 AWG (ACSR/AAAC/5005)
• Maximum Run Conductor Size: 350 KCMIL (Aluminum/Copper), 4/0 AWG (ACSR/AAAC/5005)
• Minimum Tap Conductor Size: 4 AWG Stranded (Aluminum/Copper), 4 AWG (ACSR/AAAC/5005)
• Catalog Description: TIN-PLATED, HIGH STRENGTH COPPER ALLOY SERVIT WITH SPACER. SPACER SEPERATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH THAT PREVENTS HIGH PRESSURE POINT CONTACTS BETWEEN RUN AND TAP CONDUCTORS, 2.88 IN L.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Alloy Material; 1/0 AWG Stranded (Aluminum/Copper), 3/0 AWG (Acsr/Aaac/5005) min. Run Conductor Size; 350 kcmil (Aluminum/Copper), 4/0 AWG (Acsr/Aaac/5005) Max. Run Conductor Size; 4 AWG Stranded (Aluminum/Copper), 4 AWG (Acsr/Aaac/5005) min. Tap Conductor Size; 350 kcmil (Aluminum/Copper), 4/0 AWG (Acsr/Aaac/5005) Max. Tap Conductor Size; Spacer Installation; Aluminum/Copper/Acsr/Aaac/5005/Steel Conductor Material; UL, CSA Approval; SERVIT[R] Brand; RoHS Compatible; Size 2.88 Inch L X 1.36 Inch W; Installation Torque 650 lb-Inch; Cross Flat 1.69 Inch; KSU Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810037003
• SKU Name: bur ksu31
