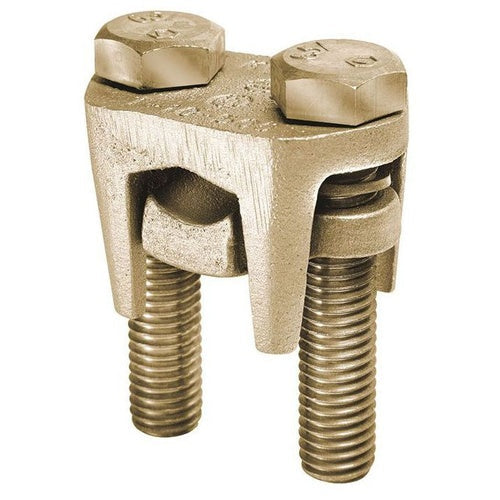

Burndy KVS31 350Mcm Copper 2 Bolt Connector

Overview

Burndy KVS31 350Mcm Copper 2 Bolt Connector

Product Specifications

• UPC: 78181006279
• Maximum Tap Conductor Size: (19) 8 AWG Stranded (Copperweld), 250 KCMIL Type V (Copperweld), 350 KCMIL (Copper)
• Material: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Installation Torque 325 Lb-Inch
• Catalog Number: KVS31
• Brand Name: OKLIP[TM]
• Model: KVS
• Installation: Two Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 250 KCMIL (Copper)
• Maximum Run Conductor Size: (19) 8 AWG Stranded (Copperweld), 250 KCMIL Type V (Copperweld), 350 KCMIL (Copper)
• Minimum Tap Conductor Size: 10 AWG Stranded (Copper)
• Catalog Description: COMPACT, TWO-PIECE, HIGH STRENGTH, HIGH COPPER ALLOY BURNDY OKLIP RECOMMENDED FOR HEAVY DUTY CONNECTIONS. NEOPRENE RINGS HOLD DURIUM BOLTS IN PLACE DURING INSTALLATION.INSTALLED WITH ORDINARY WRENCH.RECOMMENDED TIGHTENING TORQUE:325 IN-LB.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring Material; 250 kcmil (Copper) min. Run Conductor Size; (19) 8 AWG Stranded (Copperweld), 250 kcmil Type V (Copperweld), 350 kcmil (Copper) Max. Run Conductor Size; 10 AWG Stranded (Copper) min. Tap Conductor Size; (19) 8 AWG Stranded (Copperweld), 250 kcmil Type V (Copperweld), 350 kcmil (Copper) Max. Tap Conductor Size; Two Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; OKLIP[TM] Brand; RoHS Compatible; Installation Torque 325 lb-Inch; KVS Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810062791
• SKU Name: bur kvs31
