Overview

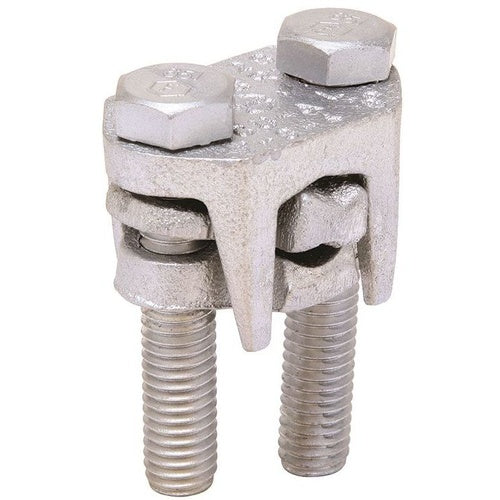

Burndy KVSU40 800Mcm Aluminum/Copper 2 Bolt Connector

Product Specifications

• UPC: 78181008450
• Maximum Tap Conductor Size: 715.5 KCMIL (ACSR/AAAC/5005), 800 KCMIL (Aluminum/Copper), 1 Inch (Steel)
• Material: High Strength Tin Plated Copper Alloy Body, Neoprene Ring, Tin Plated Silicon Bronze Durium Hardware
• Approval: CSA
• Additional Information: RoHS Compatible; Size 1-5/8 Inch L x 2-1/2 Inch W x 3-1/2 Inch H; Installation Torque 500 Lb-Inch
• Catalog Number: KVSU40
• Brand Name: OKLIP[TM]
• Model: KVSU
• Installation: Peened Bolt with Spacer
• Conductor Material: Aluminum/Copper/ACSR/AAAC/5005/Steel
• Minimum Run Conductor Size: 4/0 AWG (ACSR/AAAC/5005), 400 KCMIL (Aluminum/Copper), 3/4 Inch (Steel)
• Maximum Run Conductor Size: 800 KCMIL (Aluminum/Copper/ACSR/AAAC/5005), 1 Inch (Steel)
• Minimum Tap Conductor Size: 3/0 AWG (ACSR/AAAC/5005), 4/0 AWG (Aluminum/Copper), 1/2 Inch (Steel)
• Catalog Description: TIN-PLATED COPPER ALLOY CONNECTOR WITH TIN PLATED SILICON BRONZE HARDWARE. SPACER BAR SEPARATES DISSIMILAR CONDUCTORS AND PROVIDES LONG CONTACT LENGTH,TIGHTENING TORQUE: 500 IN -LB,WRENCH SIZE:3/4 CROSS FLATS.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Tin Plated Copper Alloy Body, Neoprene Ring, Tin Plated Silicon Bronze Durium Hardware Material; 4/0 AWG (Acsr/Aaac/5005), 400 kcmil (Aluminum/Copper), 3/4 Inch (Steel) min. Run Conductor Size; 800 kcmil (Aluminum/Copper/Acsr/Aaac/5005), 1 Inch (Steel) Max. Run Conductor Size; 3/0 AWG (Acsr/Aaac/5005), 4/0 AWG (Aluminum/Copper), 1/2 Inch (Steel) min. Tap Conductor Size; 715.5 kcmil (Acsr/Aaac/5005), 800 kcmil (Aluminum/Copper), 1 Inch (Steel) Max. Tap Conductor Size; Peened Bolt With Spacer Installation; Aluminum/Copper/Acsr/Aaac/5005/Steel Conductor Material; CSA Approval; OKLIP[TM] Brand; RoHS Compatible; Size 1-5/8 Inch L X 2-1/2 Inch W X 3-1/2 Inch H; Installation Torque 500 lb-Inch; KVSU Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810084502
• SKU Name: bur kvsu40
