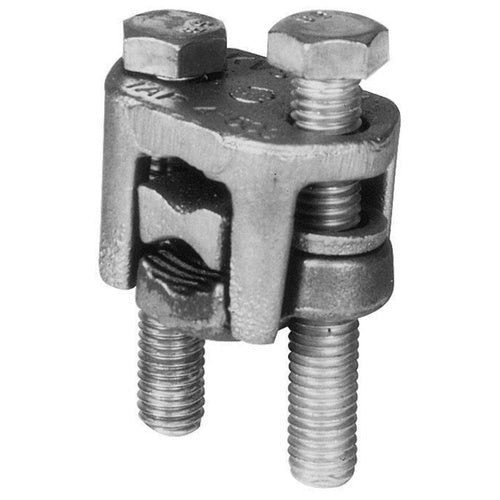

Burndy KVSW28 4/0 Copper 2-Bolt Service Entrance Compression Connector

Overview

Burndy KVSW28 4/0 Copper 2-Bolt Service Entrance Compression Connector

Product Specifications

• UPC: 78181006655
• Maximum Tap Conductor Size: 4/0 AWG Stranded
• Material: High Strength Copper Alloy Body/Spacer, Neoprene Ring, Silicon Bronze Durium Hardware
• Additional Information: RoHS Compatible; Installation Torque 250 Lb-Inch
• Catalog Number: KVSW28
• Brand Name: OKLIP[TM]
• Model: KVSW
• Installation: Two Bolt with Spacer
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 1/0 AWG Stranded
• Maximum Run Conductor Size: 4/0 AWG Stranded
• Minimum Tap Conductor Size: 6 AWG Solid
• Catalog Description: MECHANICAL CONNECTOR FOR CUWELD AND COPPER SUPPLIED WITH A CU ALLOY SPACER THAT SEPERATES RUN AND TAP CONDUCTORS, RECOMMENDED TORQUE: 250 LBS.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Body/Spacer, Neoprene Ring, Silicon Bronze Durium Hardware Material; 1/0 AWG Stranded min. Run Conductor Size; 4/0 AWG Stranded Max. Run Conductor Size; 6 AWG Solid min. Tap Conductor Size; 4/0 AWG Stranded Max. Tap Conductor Size; Two Bolt With Spacer Installation; Copper/Copperweld Conductor Material; OKLIP[TM] Brand; RoHS Compatible; Installation Torque 250 lb-Inch; KVSW Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810066553
• SKU Name: bur kvsw28
