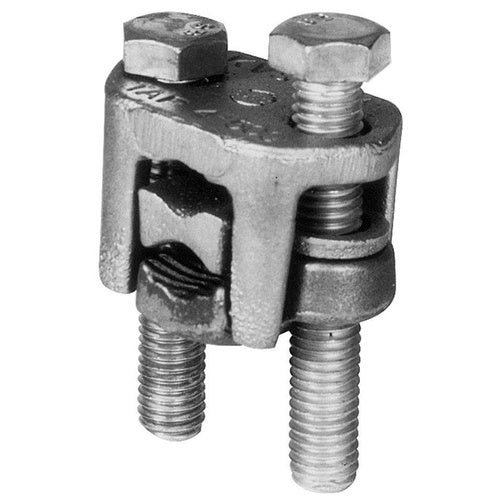

Burndy KVSW44 1000 Copper 2-Bolt Service Entrance Compression Connector

Product Specifications

• UPC: 78181006805
• Maximum Tap Conductor Size: 1000 KCMIL
• Material: High Strength Copper Alloy Body/Spacer, Neoprene Ring, Silicon Bronze Durium Hardware
• Additional Information: RoHS Compatible; Installation Torque 500 Lb-Inch
• Catalog Number: KVSW44
• Brand Name: OKLIP[TM]
• Model: KVSW
• Installation: Two Bolt with Spacer
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 500 KCMIL
• Maximum Run Conductor Size: 1000 KCMIL
• Minimum Tap Conductor Size: 250 KCMIL
• Catalog Description: MECHANICAL CONNECTOR FOR CUWELD AND COPPER SUPPLIED WITH A CU ALLOY SPACER THAT SEPERATES RUN AND TAP CONDUCTORS, RUN: 500-1000 KCMIL, TAP: 250-1000 KCMIL.
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Body/Spacer, Neoprene Ring, Silicon Bronze Durium Hardware Material; 500 kcmil min. Run Conductor Size; 1000 kcmil Max. Run Conductor Size; 250 kcmil min. Tap Conductor Size; 1000 kcmil Max. Tap Conductor Size; Two Bolt With Spacer Installation; Copper/Copperweld Conductor Material; OKLIP[TM] Brand; RoHS Compatible; Installation Torque 500 lb-Inch; KVSW Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810068052
• SKU Name: bur kvsw44
