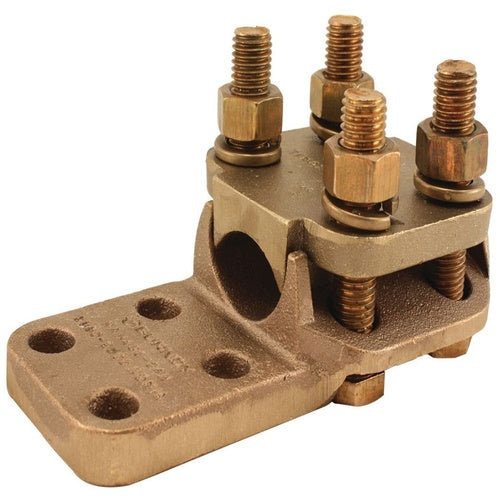

Burndy NAH34-2N Copper Terminal, 2.38"H

Overview

Burndy NAH34-2N Copper Terminal, 2.38"H

Product Specifications

• UPC: 78181000225
• Pad Size: 3 Inch L x 2 Inch W x 0.31 Inch Thk
• Stud Size: 0.56 Inch
• Overall Length: 5.88 Inch
• Material: Copper Alloy
• Additional Information: RoHS Compatible
• Catalog Number: NAH342N
• Model: NAH
• Conductor Material: Copper
• Number Of Conductors: 1
• Minimum Conductor Size: 1/0 AWG Solid/Stranded
• Maximum Conductor Size: 500 KCMIL Stranded, 4/0 AWG Solid
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Catalog Description: CAST COPPER ALLOY TERMINAL, 1/0 SOL.-500 KCMIL, 5.88 IN LENGTH, CABLE TO PAD.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 5.88 Inch Overall Length; 1/0 AWG Solid/Stranded min. Conductor Size; 500 kcmil Stranded, 4/0 AWG Solid Max. Conductor Size; Copper Conductor Material; 1 Conductor(S); 0.56 Inch Stud Size; 3 Inch L X 2 Inch W X 0.31 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; RoHS Compatible; NAH Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Substation Cable Terminal
• Unspsc: 39121456
• UPC 12 Digit: 781810002254
• SKU Name: bur nah342n
