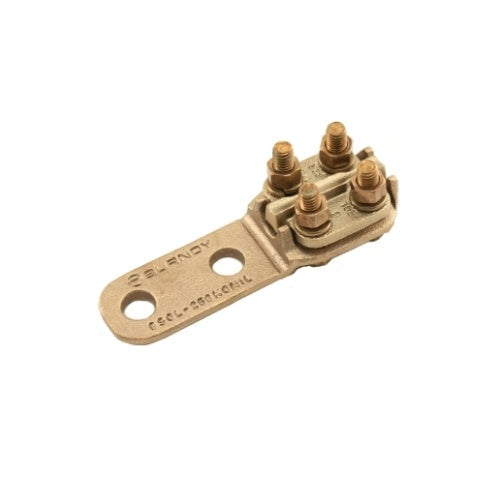

Burndy NAS29N Terminal

Product Specifications

• Catalog Description: AL BOLTED TERMINAL, CONNECTION TYPE: CABLE TO PAD, CU CABLE RANGE: 6 SOL. TO 250 KCMIL, BOLT DIA.: 3/8 IN
• Full Technical Description: Copper Alloy Material; 3.58 Inch Overall Length; 6 AWG Solid min. Conductor Size; 250 kcmil Max. Conductor Size; Copper Conductor Material; 1 Conductor(S); 0.56 Inch Stud Size; 1.25 Inch L X 1.25 Inch W X 0.25 Inch Thk Pad Size; 1 Pad Hole(S); Conductor Size 6 AWG Solid to 1/0 AWG Stranded (Small Groove), 2/0 AWG Stranded to 250 kcmil (Large Groove); NAS Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Substation Cable Terminal
• UPC 12 Digit: 781810002995
• SKU Name: bur nas29n
