Overview

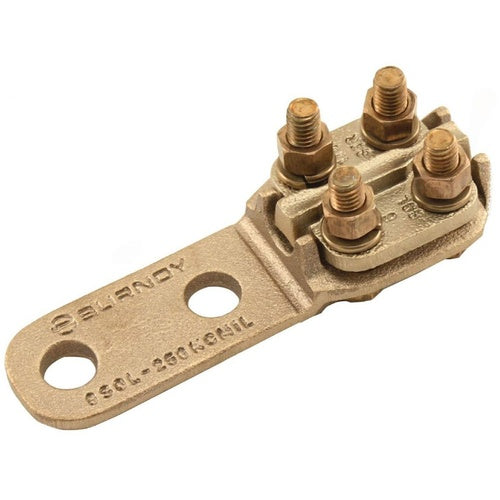

Burndy NAS34-34N Copper Terminal, 2.20" W

Product Specifications

• UPC: 78181000243
• Pad Size: 3 INCH L X 3 INCH W X 0.25 INCH THK
• Stud Size: 0.56 INCH
• Overall Length: 5.62 INCH
• Material: COPPER ALLOY
• Additional Information: CONDUCTOR SIZE 1/0 AWG SOLID TO 4/0 AWG STRANDED (SMALL GROOVE), 250 TO 500 KCMIL (LARGE GROOVE)
• Catalog Number: NAS3434N
• Model: NAS
• Conductor Material: COPPER
• Number Of Conductors: 1
• Minimum Conductor Size: 1/0 AWG SOLID
• Maximum Conductor Size: 500 KCMIL
• Number Of Pad Holes: 4
• Pad Hole Spacing: 1.75 INCH
• Catalog Description: CAST CU ALLOY (REVERSIBLE CAP) TERMINAL, 1/0 SOL-500 KCMIL, BOLTED, CABLE TO FLAT, 4 PAD HOLES, SILICON BRONZE H/W, FOR CU CABLE.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 5.62 Inch Overall Length; 1/0 AWG Solid min. Conductor Size; 500 kcmil Max. Conductor Size; Copper Conductor Material; 1 Conductor(S); 0.56 Inch Stud Size; 3 Inch L X 3 Inch W X 0.25 Inch Thk Pad Size; 4 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Conductor Size 1/0 AWG Solid to 4/0 AWG Stranded (Small Groove), 250 to 500 kcmil (Large Groove); NAS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Substation Cable Terminal
• Unspsc: 39121456
• UPC 12 Digit: 781810002438
• SKU Name: bur nas3434n
