Overview

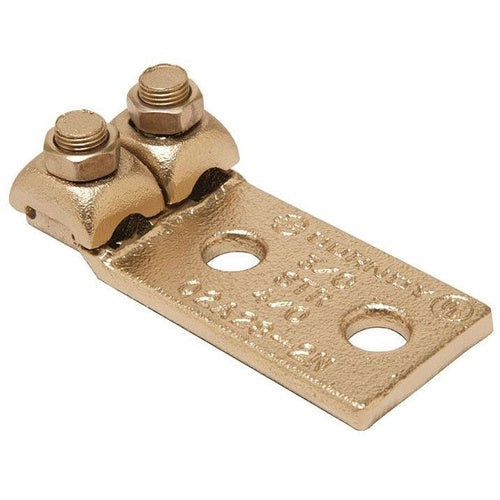

Burndy Q2A1C2 1 Copper 2-Hole Terminal Lug

Product Specifications

• Catalog Description: HEAVY DUTY COPPER LUG, 2-CONDUCTOR, 2-HOLE, 3/8" STUD, 1" SPACING. ONE CLAMPING ELEMENT PER CONDUCTOR. #4-1 AWG STR, COPPER.
• Full Technical Description: Copper Alloy Material; 2.88 Inch Overall Length; 4 AWG Stranded min. Conductor Size; 1 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 468A/B, CSA Approval; 3/8 Inch Stud Size; 1.5 Inch Width X 0.22 Inch Thickness Pad Size; 2 Pad Hole(S); Equipment Pad Type; QIKLUG[TM] Brand; RoHS Compatible With Exemption; Compact; One Wrench Installation; Installation Torque 150 in-lb; Q2A Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810321089
• SKU Name: bur q2a1c2
