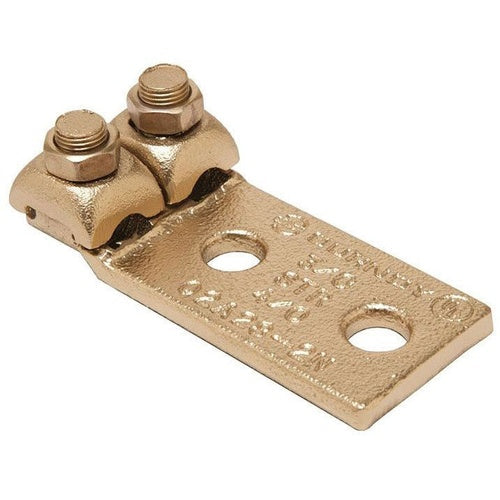

Burndy Q2A262N 2/0 Copper 2-Hole Terminal Lug

Product Specifications

• Catalog Description: HEAVY DUTY COPPER LUG, 2-CONDUCTOR, 2-HOLE, 1/2" STUD, 1.75" SPACING. ONE CLAMPING ELEMENT PER CONDUCTOR. 1/0-2/0 AWG STR COPPER.
• Full Technical Description: Set Screw Type; Copper Alloy Material; 4.19 Inch Overall Length; 1/0 AWG Stranded min. Conductor Size; 2/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 468-A, UL 468-B Approval; 2 Conductor(S); 1/2 Inch Stud Size; 3.13 Inch L X 1.63 Inch W X 0.22 Inch Thk Pad Size; 2 NEMA Pad Hole(S); Equipment Pad Type; Stud Hex Nut Screw Type; QIKLUG[TM] Brand; RoHS Compatible; Stud Hole Spacing Size 3/4 Inch; Installation Torque 180 lb-Inch; Q2A Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810321249
• SKU Name: bur q2a262n
