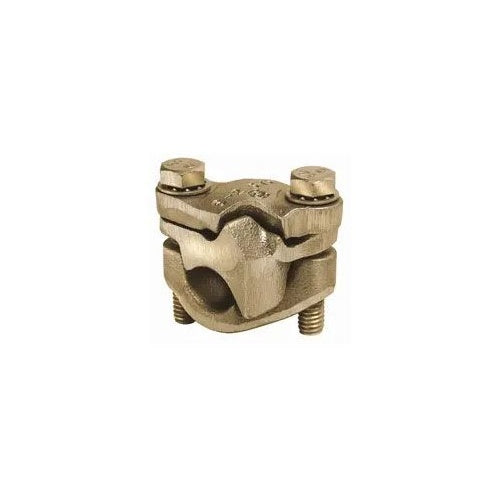

Burndy QPX282C 4/0Awg Copper 2 Bolt Connector

Overview

Burndy QPX282C 4/0Awg Copper 2 Bolt Connector

Product Specifications

• UPC: 78181034200
• Maximum Tap Conductor Size: 2 AWG STRANDED (COPPER), 5 AWG SOLID (COPPERWELD), 4 AWG TYPE A (COPPERWELD-COPPER)
• Material: HIGH CONDUCTIVITY COPPER ALLOY BODY, DURIUM SILICONE BRONZE HARDWARE
• Approval: UL 486-C, CSA
• Additional Information: ROHS COMPATIBLE; SIZE 1 5/8 INCH L X 1 9/16 INCH W X 2 1/16 INCH H; STUD/BOLT SIZE 5/16 INCH; INSTALLATION TORQUE 250 LB-INCH
• Catalog Number: QPX282C
• Brand Name: VERSITAP[T], BURNDY[R]
• Model: QPX
• Installation: BUTT/CROSS/PARALLEL/TAP/TEE CONNECTION
• Conductor Material: COPPER/COPPERWELD
• Minimum Run Conductor Size: 1 AWG STRANDED (COPPER), 9 AWG (COPPERWELD), 3 AWG TYPE A (COPPERWELD-COPPER)
• Maximum Run Conductor Size: 4/0 AWG STRANDED (COPPER), 5 AWG (COPPERWELD), 3/0 AWG TYPE V (COPPERWELD-COPPER)
• Minimum Tap Conductor Size: 6 AWG STRANDED (COPPER), 7 AWG (COPPERWELD), 8 AWG TYPE A (COPPERWELD-COPPER)
• Catalog Description: VERSITAP MECHANICAL PARALLEL CLAMP FOR CU, RUN: 1/0-4/0 AWG, TAP: #6-2 AWG. CAPABLE OF TEE, CROSS, PARALLEL, BUTT AND TAP CONFIGURATIONS
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Copper Alloy Body, Durium Silicone Bronze Hardware Material; 1 AWG Stranded (Copper), 9 AWG (Copperweld), 3 AWG Type A (Copperweld-Copper) min. Run Conductor Size; 4/0 AWG Stranded (Copper), 5 AWG (Copperweld), 3/0 AWG Type V (Copperweld-Copper) Max. Run Conductor Size; 6 AWG Stranded (Copper), 7 AWG (Copperweld), 8 AWG Type A (Copperweld-Copper) min. Tap Conductor Size; 2 AWG Stranded (Copper), 5 AWG Solid (Copperweld), 4 AWG Type A (Copperweld-Copper) Max. Tap Conductor Size; Butt/Cross/Parallel/Tap/Tee Connection Installation; Copper/Copperweld Conductor Material; UL 486-C, CSA Approval; VERSITAP[T], BURNDY[R] Brand; RoHS Compatible; Size 1 5/8 Inch L X 1 9/16 Inch W X 2 1/16 Inch H; Stud/Bolt Size 5/16 Inch; Installation Torque 250 lb-Inch; QPX Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810342008
• SKU Name: bur qpx282c
