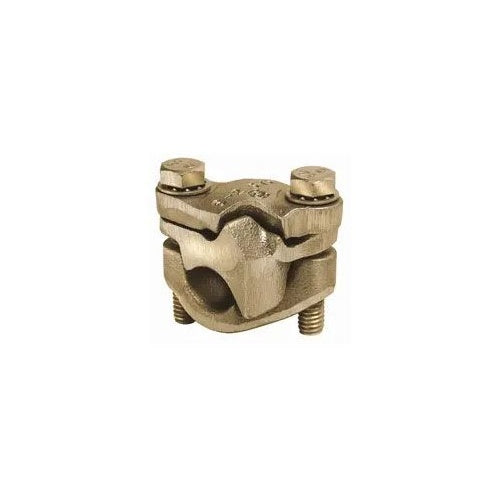

Burndy QPX4434 1000 Copper 2 Bolt Connector

Overview

Burndy QPX4434 1000 Copper 2 Bolt Connector

Product Specifications

• UPC: 78181034550
• Maximum Tap Conductor Size: 500 KCMIL (COPPER), 6 AWG (COPPERWELD), 4/0 AWG TYPE EK (COPPERWELD-COPPER)
• Material: HIGH CONDUCTIVITY COPPER ALLOY BODY, DURIUM SILICONE BRONZE HARDWARE
• Approval: UL 486-C, CSA
• Additional Information: ROHS COMPATIBLE; SIZE 2 1/16 INCH L X 2 7/16 INCH W X 3 1/16 INCH H; STUD/BOLT SIZE 3/8 INCH; INSTALLATION TORQUE 300 LB-INCH
• Catalog Number: QPX4434
• Brand Name: VERSITAP[T], BURNDY[R]
• Model: QPX
• Installation: BUTT/CROSS/PARALLEL/TAP/TEE CONNECTION
• Conductor Material: COPPER/COPPERWELD
• Minimum Run Conductor Size: 500 KCMIL (COPPER)
• Maximum Run Conductor Size: 1000 KCMIL (COPPER), 6 AWG (COPPERWELD)
• Minimum Tap Conductor Size: 250 KCMIL (COPPER), 19 AWG (COPPERWELD)
• Catalog Description: VERSITAP MECHANICAL PARALLEL CLAMP FOR CU, RUN: 500-1000 KCMIL, TAP: 250-500 KCMIL. CAPABLE OF TEE, CROSS, PARALLEL, BUTT AND TAP CONFIGURATIONS
• Category: Large Terminals & Connectors
• Full Technical Description: High Conductivity Copper Alloy Body, Durium Silicone Bronze Hardware Material; 500 kcmil (Copper) min. Run Conductor Size; 1000 kcmil (Copper), 6 AWG (Copperweld) Max. Run Conductor Size; 250 kcmil (Copper), 19 AWG (Copperweld) min. Tap Conductor Size; 500 kcmil (Copper), 6 AWG (Copperweld), 4/0 AWG Type Ek (Copperweld-Copper) Max. Tap Conductor Size; Butt/Cross/Parallel/Tap/Tee Connection Installation; Copper/Copperweld Conductor Material; UL 486-C, CSA Approval; VERSITAP[T], BURNDY[R] Brand; RoHS Compatible; Size 2 1/16 Inch L X 2 7/16 Inch W X 3 1/16 Inch H; Stud/Bolt Size 3/8 Inch; Installation Torque 300 lb-Inch; QPX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810345504
• SKU Name: bur qpx4434
