Burndy QPX4444 1000Cop 2Blt Connector

Overview

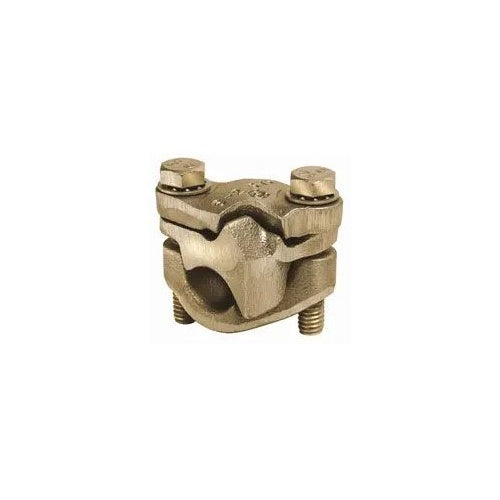

Burndy QPX4444 1000Cop 2Blt Connector

Product Specifications

• Catalog Description: VERSITAP MECHANICAL PARALLEL CLAMP FOR CU, RUN: 500-1000 KCMIL, TAP: 500-1000 KCMIL. CAPABLE OF TEE, CROSS, PARALLEL, BUTT AND TAP CONFIGURATIONS
• Full Technical Description: Parallel Clamp Type; High Conductivity Copper Alloy Body, Durium Silicone Bronze Hardware Material; 500 kcmil Stranded (Copper) min. Run Conductor Size; 1000 kcmil Stranded (Copper), (19) 6 AWG Solid (Copperweld) Max. Run Conductor Size; 500 kcmil Stranded (Copper) min. Tap Conductor Size; 1000 kcmil Stranded (Copper), (19) 6 AWG Solid (Copperweld) Max. Tap Conductor Size; Butt/Cross/Parallel/Tap/Tee Connection Installation; Copper/Copperweld Conductor Material; UL 486B, CSA Approval; VERSITAP[TM] Brand; RoHS Compatible; Size 2.62 Inch L X 2.56 Inch W X 3.44 Inch H; Stud/Bolt Size 3/8 Inch; Installation Torque 500 lb-Inch; QPX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810345757
• SKU Name: bur qpx4444

Resources

• Manufacturer Spec Sheet
