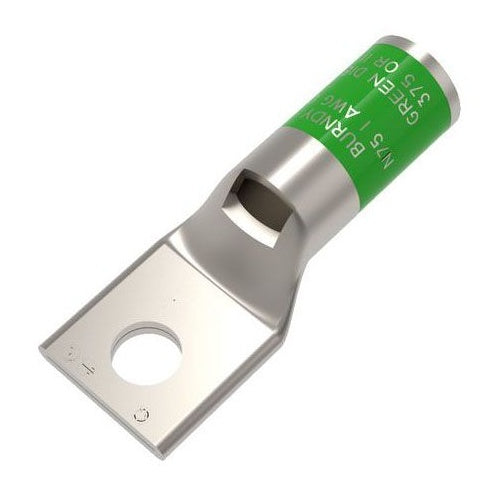

Burndy YA1CL2 1Awg Copper Lug

Product Specifications

• UPC: 78181055126
• Pad Size: 0.68 Inch W x 0.1 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Green
• Die Index: 11/375
• Material: Electro-Tin Plated Copper
• Overall Length: 1.81 Inch
• Approval: UL 467, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 15/16 Inch; Cable Entry Type Chamfered, Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: YA1CL2
• Brand Name: HYLUG[TM]
• Model: Type YA-L
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 75 (Navy), 1 AWG Stranded (Code)
• Barrel Type: Short, Skived, Standard, Straight
• Barrel Length: 0.88 Inch
• Catalog Description: 1 AWG CU, ONE HOLE, 1/4 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, GREEN COLOR CODE, 11 OR 375 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Green Color; 1.81 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 600 V to 35 kV Voltage Rating; 75 (Navy), 1 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 11/375 Die Index; 0.68 Inch W X 0.1 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 15/16 Inch; Cable Entry Type Chamfered, Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C; TYPE YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810551264
• SKU Name: bur ya1cl2
