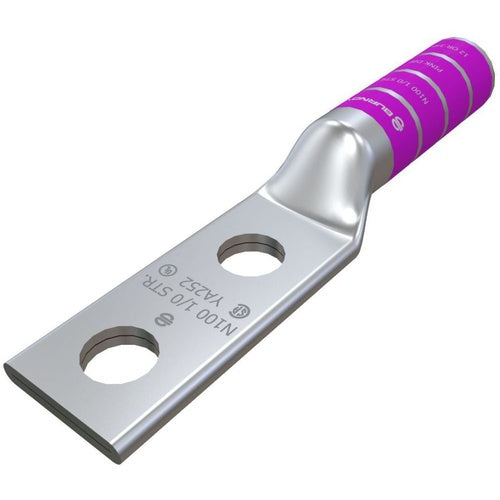

Burndy YA252 1/0Awg Copper 2-Hole Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, 2 HOLE W/O INSPECTION WINDOW, 1/0 AWG, 5/16" STUD, 7/8" STUD HOLE SPACING, LONG BARREL, TIN PLATED.
• Full Technical Description: Electro-Tin Plated Copper Material; Pink Color; 3.25 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 1/0 AWG Stranded Conductor Size; 5/16 Inch Stud Size; 15 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 2 Pad Hole(S); 0.88 Inch Pad Hole Spacing; Long, Straight Barrel Type; HYLUG[TM], HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 1-7/16 Inch; Cable Entry Type Chamfered; YA Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810502204
• SKU Name: bur ya252
