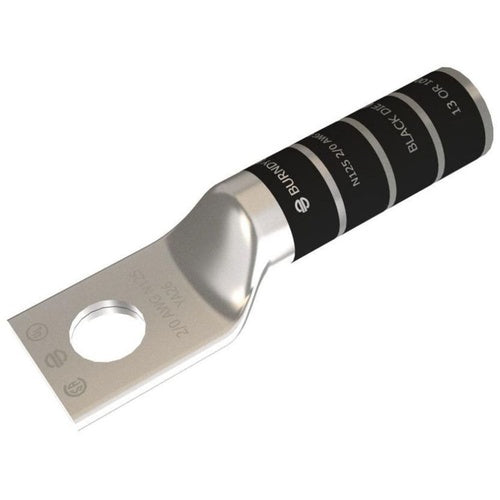

Burndy YA26 2/0Awg Copper 1-Hole Lug

Product Specifications

• UPC: 78181050260
• Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Black
• Die Index: 13
• Material: Electro-Tin Plated Copper
• Overall Length: 2.77 Inch
• Approval: UL 468A/B, CSA, UL
• Additional Information: RoHS Compliant; Wire Strip Length 1-9/16 Inch; Cable Entry Type Beveled; Temperature Rating 90 Deg C
• Catalog Number: YA26
• Brand Name: HYLUG[TM]
• Model: YA
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2/0 AWG (Stranded), 125 (61) Navy
• Barrel Type: Long, Standard, Straight, Chamfered, Non-Insulated
• Barrel Length: 1.5 Inch
• Catalog Description: 2/0 AWG CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,BLACK COLOR CODE, 13 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Black Color; 2.77 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2/0 AWG Stranded (Code), 125 (Navy) Conductor Size; 3/8 Inch Stud Size; 13 Die Index; 0.83 Inch Width X 0.12 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight, Non-Insulated Barrel Type; Hylug Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-9/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810502600
• SKU Name: bur ya26
