Overview

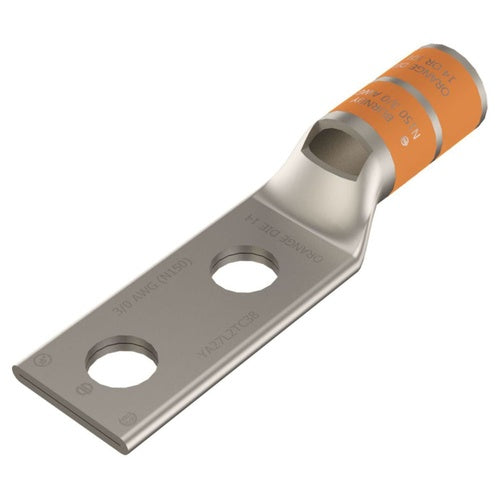

Burndy YA27-2LN 3/0Awg Copper 2-Hole Lug

Product Specifications

• UPC: 78181050322
• Pad Size: 0.91 Inch Width x 0.13 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Orange
• Die Index: 14
• Material: Electro Tin Plated Copper
• Overall Length: 4.48 Inch
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 1/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YA272LN
• Brand Name: HYLUG[TM]
• Model: YA-2LN
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2/0 AWG Stranded (Code)
• Barrel Type: Short, Standard, Straight, Skived
• Barrel Length: 4.48 Inch
• Catalog Description: 3/0 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, ORANGE COLOR CODE, 14 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Orange Color; 4.48 Inch Overall Length; 4.48 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 2/0 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 14 Die Index; 0.91 Inch Width X 0.13 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Short, Standard, Straight, Skived Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 1/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-2LN Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810503225
• SKU Name: bur ya272ln
