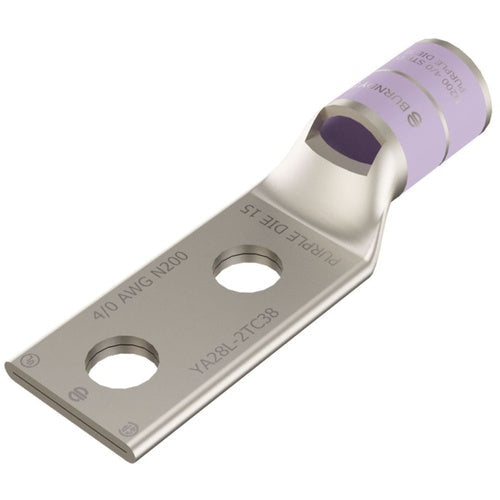

Burndy YA28-2LN 4/0Awg Copper 2-Hole Lug

Overview

Burndy YA28-2LN 4/0Awg Copper 2-Hole Lug

Product Specifications

• UPC: 78181050352
• Pad Size: 1.02 Inch Width x 0.14 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: 15
• Material: Electro-Tin Plated Copper
• Overall Length: 4.41 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 1-1/8 Inch; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: YA282LN
• Brand Name: Burndy
• Model: YA-2LN
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4/0 AWG Stranded, 200 Navy
• Barrel Type: Short, Skived, Straight
• Barrel Length: 0.88 Inch
• Catalog Description: 4/0 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Purple Color; 4.41 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4/0 AWG Stranded, 200 Navy Conductor Size; 1/2 Inch Stud Size; 15 Die Index; 1.02 Inch Width X 0.14 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Short, Skived, Straight Barrel Type; Hylug Brand; RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 1-1/8 Inch; Includes Inspection Window; Temperature Rating 90 Deg C; YA-2LN Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810503522
• SKU Name: bur ya282ln
