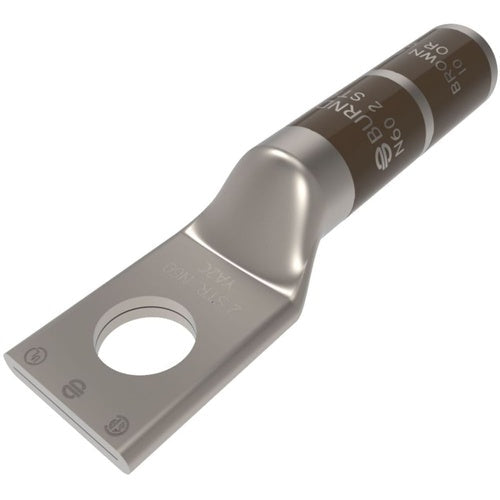

Burndy YA2C 2Awg Copper 1-Hole Lug

Overview

Burndy YA2C 2Awg Copper 1-Hole Lug

Product Specifications

• UPC: 78181050065
• Pad Size: 0.6 Inch Width x 0.11 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/16 Inch
• Color: Brown
• Die Index: 10
• Material: Electro Tin Plated Copper
• Overall Length: 2.29 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-5/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window
• Catalog Number: YA2C
• Brand Name: HYLUG[TM]
• Model: YA
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2 AWG Stranded (Code), 60 (Navy)
• Barrel Type: Long, Straight, Non-Insulated
• Barrel Length: 1.25 Inch
• Catalog Description: 2 AWG CU, ONE HOLE, 5/16 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 2.29 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2 AWG Stranded (Code), 60 (Navy) Conductor Size; 5/16 Inch Stud Size; 10 Die Index; 0.6 Inch Width X 0.11 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight, Non-Insulated Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-5/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810500651
• SKU Name: bur ya2c
