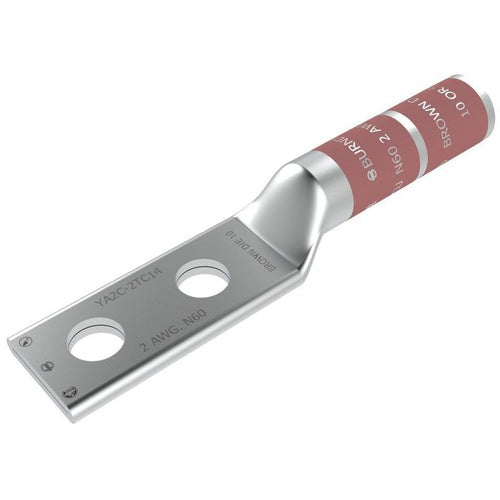

Burndy YA2C2-TC38 2Awg Copper 2-Hole Lug 50235D

Product Specifications

• UPC: 78181050351
• Pad Size: 0.6 Inch Width x 0.11 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Brown
• Die Index: 10
• Material: Electro Tin Plated Copper
• Overall Length: 3.42 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-5/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window
• Catalog Number: YA2C2TC38
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-2TC
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2 AWG Stranded (Code), 60 (Navy)
• Barrel Type: Long, Straight
• Barrel Length: 1.25 Inch
• Catalog Description: 2 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 3.42 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2 AWG Stranded (Code), 60 (Navy) Conductor Size; 3/8 Inch Stud Size; 10 Die Index; 0.6 Inch Width X 0.11 Inch Thickness Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Straight Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-5/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810503515
• SKU Name: bur ya2c2tc38
