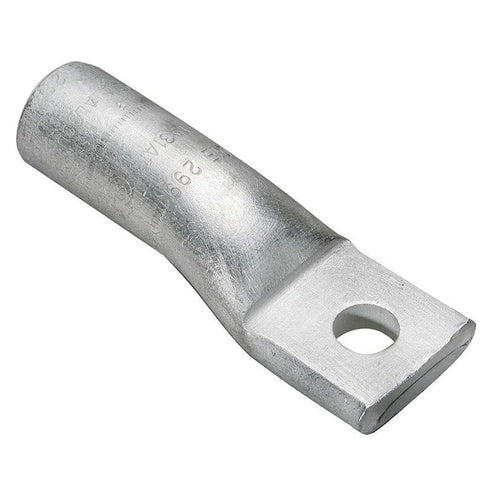

Burndy YA2CA3 2Awg Aluminum/Copper 1-Hole Lug

Overview

Burndy YA2CA3 2Awg Aluminum/Copper 1-Hole Lug

Product Specifications

• UPC: 78181075150
• Pad Size: 0.88 Inch W x 0.16 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Pink
• Die Index: 348
• Material: Electro-Tin Plated Aluminum
• Overall Length: 2.56 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/8 Inch; Includes Inspection Window, Color Coded Cap; Temperature Rating 90 Deg C
• Catalog Number: YA2CA3
• Brand Name: HYLUG[TM]
• Model: Type YA-A
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 2 AWG Aluminum (Code), 2 AWG Stranded Copper (Code)
• Barrel Type: Standard, Straight
• Barrel Length: 1.12 Inch
• Catalog Description: 2 AWG, AL TERMINAL, ONE HOLE, 3/8", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 348 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Aluminum Material; Pink Color; 2.56 Inch Overall Length; 1.12 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/B, CSA Approval; 600 V to 35 kV Voltage Rating; 2 AWG Aluminum (Code), 2 AWG Stranded Copper (Code) Conductor Size; 3/8 Inch Stud Size; 348 Die Index; 0.88 Inch W X 0.16 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 1-1/8 Inch; Includes Inspection Window, Color Coded Cap; Temperature Rating 90 Deg C; TYPE YA-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810751503
• SKU Name: bur ya2ca3
