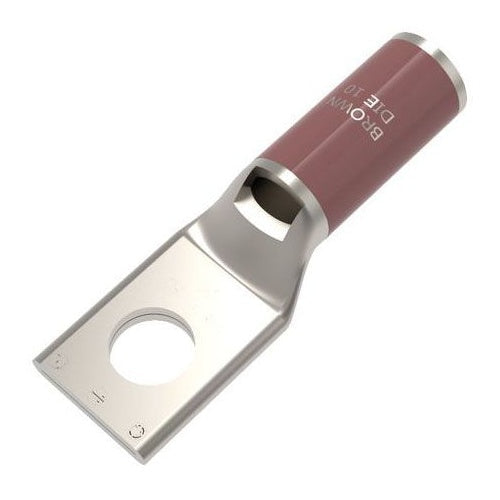

Burndy YA2CL2BOX 2Str Copper 1-Hole Short 1/4

Overview

Burndy YA2CL2BOX 2Str Copper 1-Hole Short 1/4

Product Specifications

• UPC: 78181055175
• Pad Size: 0.61 Inch W x 0.11 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Brown
• Die Index: 10
• Material: Electro-Tin Plated Copper
• Overall Length: 1.88 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 15/16 Inch; Cable Entry Type Chamfered, Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: YA2CL2BOX
• Brand Name: HYLUG[TM]
• Model: Type YA-L
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 2 AWG Stranded (Code)
• Barrel Type: Short, Skived, Standard, Straight
• Barrel Length: 0.88 Inch
• Catalog Description: 2 AWG CU, ONE HOLE, 1/4 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 1.88 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 2 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 10 Die Index; 0.61 Inch W X 0.11 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 15/16 Inch; Cable Entry Type Chamfered, Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C; TYPE YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810551752
• SKU Name: bur ya2cl2box
