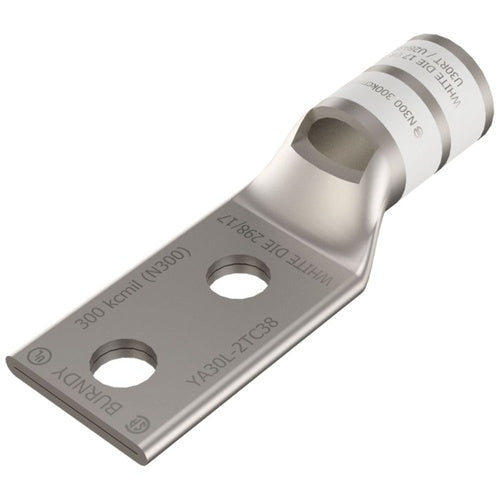

Burndy YA30-2LN 300Mcm Copper 2-Hole Lug

Product Specifications

• UPC: 78181050467
• Pad Size: 1.2 Inch W x 0.16 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: White
• Die Index: 17/298
• Material: Electro-Tin Plated Copper
• Overall Length: 4.63 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA302LN
• Brand Name: HYLUG[TM]
• Model: YA-2LN
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 300 KCMIL Stranded (Code)
• Barrel Type: Short, Standard, Straight
• Barrel Length: 1.03 Inch
• Catalog Description: 300 KCMIL CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 17 OR 298 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; White Color; 4.63 Inch Overall Length; 1.03 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 300 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 17/298 Die Index; 1.2 Inch W X 0.16 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-2LN Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810504673
• SKU Name: bur ya302ln
