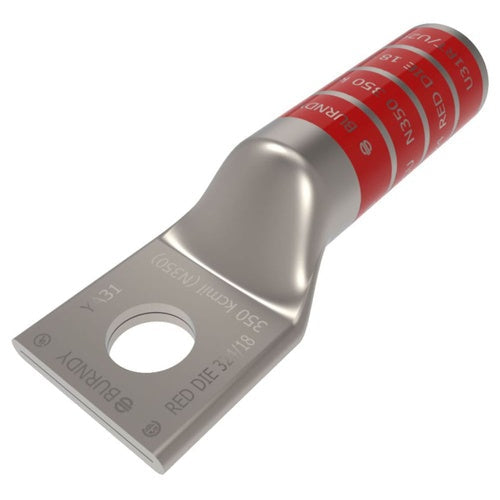

Burndy YA31 350Mcm Copper 1-Hole Lug

Product Specifications

• UPC: 78181050495
• Pad Size: 1.29 Inch Width x 0.18 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Red
• Die Index: 18/324
• Material: Electro Tin Plated Copper
• Overall Length: 3.73 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-1/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window
• Catalog Number: YA31
• Brand Name: HYLUG[TM]
• Model: YA
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 350 KCMIL Stranded (Code), 350 (Navy)
• Barrel Type: Long, Straight, Non-Insulated
• Barrel Length: 2 Inch
• Catalog Description: 350 KCMIL CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,RED COLOR CODE, 18 OR 324 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 3.73 Inch Overall Length; 2 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 350 kcmil Stranded (Code), 350 (Navy) Conductor Size; 1/2 Inch Stud Size; 18/324 Die Index; 1.29 Inch Width X 0.18 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight, Non-Insulated Barrel Type; Hylug Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-1/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810504956
• SKU Name: bur ya31
