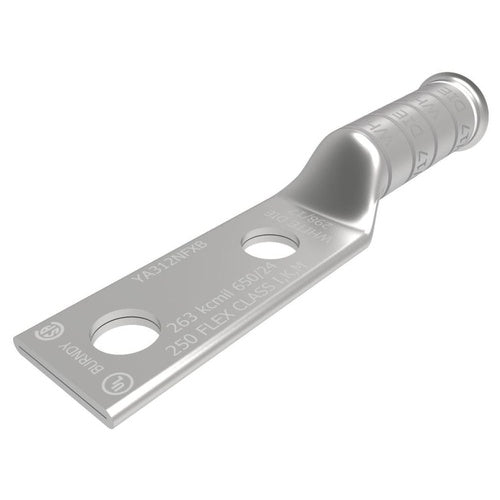

Burndy YA31-2N-FXB Belled Lug-263 Flex

Overview

Burndy YA31-2N-FXB Belled Lug-263 Flex

Product Specifications

• UPC: 78181003990
• Pad Size: 1.29 Inch W x 0.18 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: White
• Die Index: 17
• Material: Electro-Tin Plated Copper
• Overall Length: 5.85 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 2-1/4 Inch; Cable Entry Type Beveled Entry
• Catalog Number: YA312NFXB
• Brand Name: HYLUG[TM]
• Model: YA-FXB
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 637/24 Class I/K/M Diesel Locomotive Cable, 250 KCMIL G/H/I/M (Flex), 250 KCMIL Stranded
• Barrel Type: Long, Belled, Standard, Straight
• Barrel Length: 2.18 Inch
• Catalog Description: 250 KCMIL I, K, M, 262 DLO CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 17 OR 298 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; White Color; 5.85 Inch Overall Length; 2.18 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 637/24 Class I/K/M Diesel Locomotive Cable, 250 kcmil G/H/I/M (Flex), 250 kcmil Stranded Conductor Size; 1/2 Inch Stud Size; 17 Die Index; 1.29 Inch W X 0.18 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Belled, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 2-1/4 Inch; Cable Entry Type Beveled Entry; YA-FXB Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810039908
• SKU Name: bur ya312nfxb
