Overview

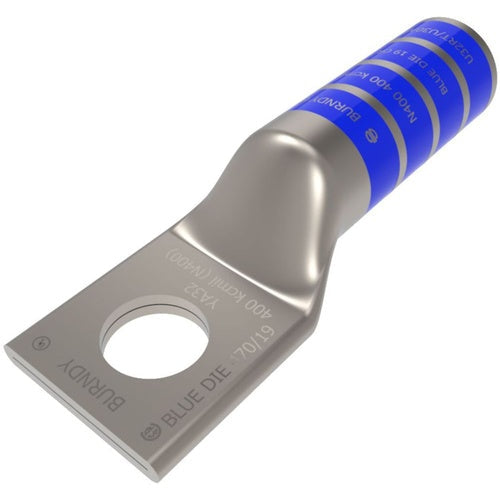

Burndy YA32 400Mcm Copper 1-Hole Lug

Product Specifications

• UPC: 78181050540
• Pad Size: 1.4 Inch Width x 0.19 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Blue
• Die Index: 19/470
• Material: Electro-Tin Plated Copper
• Overall Length: 4.15 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 2-3/16 Inch; Temperature Rating 90 Deg C
• Catalog Number: YA32
• Brand Name: Burndy
• Model: YA
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 400 KCMIL Stranded, 400 Navy
• Barrel Type: Long, Straight
• Barrel Length: 2.12 Inch
• Catalog Description: 400 KCMIL CU, ONE HOLE, 5/8 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,BLUE COLOR CODE, 19 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Blue Color; 4.15 Inch Overall Length; 2.12 Inch Barrel Length; Copper Conductor Material; UL 468A/B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 400 kcmil Stranded, 400 Navy Conductor Size; 5/8 Inch Stud Size; 19/470 Die Index; 1.4 Inch Width X 0.19 Inch Thickness Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 2-3/16 Inch; Temperature Rating 90 Deg C; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810505403
• SKU Name: bur ya32
