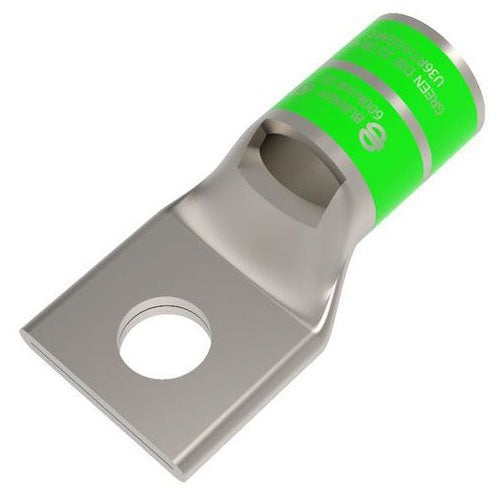

Burndy YA36-L 600Mcm Copper 1-Hole Lug

Product Specifications

• UPC: 78181052160
• Pad Size: 1.74 Inch Width x 0.27 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Green
• Die Index: 22/472
• Material: Electro Tin Plated Copper
• Overall Length: 3.54 Inch
• Approval: UL 467, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 3/4 INCH; TEMPERATURE RATING 90 DEG C
• Catalog Number: YA36L
• Brand Name: HYLUG[TM]
• Model: YA-L
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 600 KCMIL Stranded (Code)
• Barrel Type: Short, Standard, Straight, Skived
• Barrel Length: 1.38 Inch
• Catalog Description: 600 KCMIL CU, ONE HOLE, 5/8 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, GREEN COLOR CODE, 22 OR 472 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Green Color; 3.54 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 600 kcmil Stranded (Code) Conductor Size; 5/8 Inch Stud Size; 22/472 Die Index; 1.74 Inch Width X 0.27 Inch Thickness Pad Size; 1 Pad Hole(S); Short, Standard, Straight, Skived Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 3/4 Inch; Temperature Rating 90 Deg C; YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810521601
• SKU Name: bur ya36l
