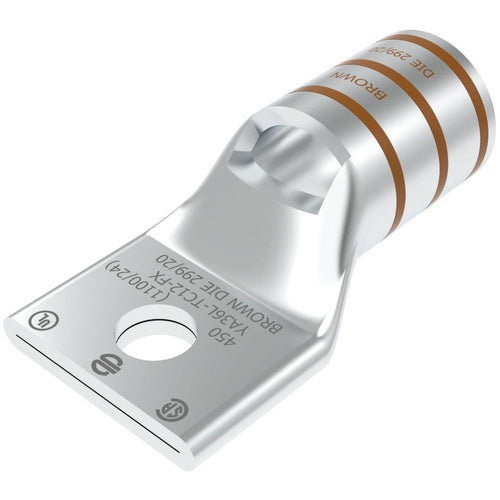

Burndy YA36L-TC12-FX 600Mcm 1-Hole Lug

Overview

Burndy YA36L-TC12-FX 600Mcm 1-Hole Lug

Product Specifications

• UPC: 78181002151
• Pad Size: 1.74 INCH W X 0.27 INCH THK
• Number Of Pad Holes: 1
• Stud Size: 1/2 INCH
• Color: BROWN
• Die Index: 20/299
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 3.29 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 3/8 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YA36LTC12FX
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-L-FX
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 1100/24, 444.4 KCMIL, 450 KCMIL (FLEX)
• Barrel Type: STANDARD, STRAIGHT
• Barrel Length: 1.38 INCH
• Catalog Description: 500 KCMIL G, H, 444 DLO CU, ONE HOLE, 1/2 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 20 OR 299 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 3.29 Inch Overall Length; 1.38 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1100/24, 444.4 kcmil, 450 kcmil (Flex) Conductor Size; 1/2 Inch Stud Size; 20/299 Die Index; 1.74 Inch W X 0.27 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1 3/8 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-FX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810021514
• SKU Name: bur ya36ltc12fx
