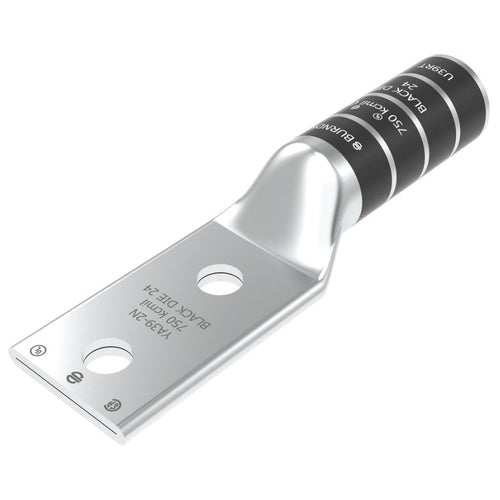

Burndy YA39-2N 750Mcm 2-Hole Lug

Product Specifications

• UPC: 78181052235
• Pad Size: 1.91 Inch Width x 0.27 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Black
• Die Index: 24
• Material: Electro Tin Plated Copper
• Overall Length: 6.87 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-15/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window
• Catalog Number: YA392N
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-2N
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 750 KCMIL Stranded (Code)
• Barrel Type: Long, Straight
• Barrel Length: 2.88 Inch
• Catalog Description: COPPER COMPRESSION LUG, 2 HOLE W/O INSPECTION WINDOW, 750 KCMIL, 1/2" STUD, 1-3/4" STUD HOLE SPACING, LONG BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Black Color; 6.87 Inch Overall Length; 2.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 750 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 24 Die Index; 1.91 Inch Width X 0.27 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 2-15/16 Inch; Temperature Rating 90 Deg C; Less Inspection Window; YA-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810522356
• SKU Name: bur ya392n
