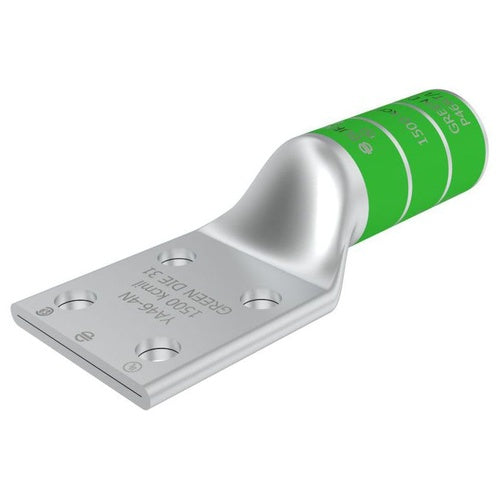

Burndy YA46-4N 1500Mcm Copper 4-Hole Lug

Overview

Burndy YA46-4N 1500Mcm Copper 4-Hole Lug

Product Specifications

• UPC: 78181008605
• Pad Size: 3 Inch W x 0.34 Inch Thk
• Number Of Pad Holes: 4
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Green
• Die Index: 31
• Material: Tin Plated Copper
• Overall Length: 7.55 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 3-1/4 Inch; Cable Entry Type Chamfered
• Catalog Number: YA464N
• Brand Name: HYLUG[TM]
• Model: YA
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 1500 KCMIL Stranded (Code)
• Barrel Type: Long, Straight
• Barrel Length: 3.19 Inch
• Catalog Description: COPPER COMPRESSION LUG, 4 HOLE W/O INSPECTION WINDOW, 1500 KCMIL, 1/2" STUD, 1-3/4" STUD HOLE SPACING, LONG BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Green Color; 7.55 Inch Overall Length; 3.19 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 1500 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 31 Die Index; 3 Inch W X 0.34 Inch Thk Pad Size; 4 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 3-1/4 Inch; Cable Entry Type Chamfered; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810086056
• SKU Name: bur ya464n
