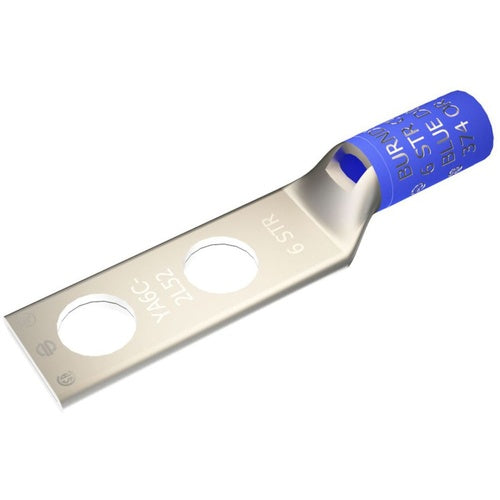

Burndy YA6CL-2TC14 6Awg Copper 2-Hole Lug

Product Specifications

• UPC: 78181050360
• Number Of Pad Holes: 2
• Pad Hole Spacing: 5/8 Inch
• Stud Size: 1/4 Inch
• Color: Blue
• Die Index: 7/374
• Material: Electro Tin Plated Copper
• Overall Length: 2.07 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Tongue Angle Straight; Strip Length 5/8 Inch; Cable Entry Type Beveled; Temperature Rating 90 Deg C; Includes Inspection Window
• Catalog Number: YA6CL2TC14
• Brand Name: HYLUG[TM]
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG Solid/Stranded
• Barrel Type: Short, Standard, Chamfered, Skived
• Barrel Length: 0.54 Inch
• Pad Size: 0.45 Inch Width x 0.08 Inch Thickness
• Catalog Description: COPPER COMPRESSION LUG, 2 HOLE W/ INSPECTION WINDOW, 6 AWG, 1/4" STUD, 5/8" STUD HOLE SPACING, SHORT BARREL, TIN - ELECTRO PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 2.07 Inch Overall Length; 0.54 Inch Barrel Length; Copper Conductor Material; UL 468A/B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 6 AWG Solid/Stranded Conductor Size; 1/4 Inch Stud Size; 7/374 Die Index; 0.45 Inch Width X 0.08 Inch Thickness Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Short, Standard, Chamfered, Skived Barrel Type; HYLUG[TM] Brand; RoHS Compliant; Tongue Angle Straight; Strip Length 5/8 Inch; Cable Entry Type Beveled; Temperature Rating 90 Deg C; Includes Inspection Window
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810503607
• SKU Name: bur ya6cl2tc14
