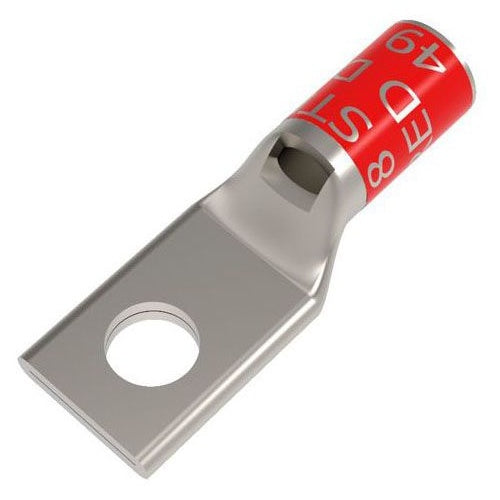

Burndy YA8C-L1BOX 1-Hole 8Str Copper Compression Lug

Product Specifications

• UPC: 78181052567
• Pad Size: 0.44 Inch Width x 0.08 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Red
• Die Index: 49
• Material: Electro Tin Plated Copper
• Overall Length: 1.26 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
• Catalog Number: YA8CL1BOX
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-L
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG Solid, 8 AWG Stranded (Code), 23 (Navy), 37/24 (DLO), 8 AWG (Flex)
• Barrel Type: Standard, Straight, Non-Insulated
• Barrel Length: 0.44 Inch
• Catalog Description: 8 AWG CU, ONE HOLE, 1/4 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, RED COLOR CODE, 49 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 1.26 Inch Overall Length; 0.44 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 6 AWG Solid, 8 AWG Stranded (Code), 23 (Navy), 37/24 (Dlo), 8 AWG (Flex) Conductor Size; 1/4 Inch Stud Size; 49 Die Index; 0.44 Inch Width X 0.08 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810525678
• SKU Name: bur ya8cl1box
