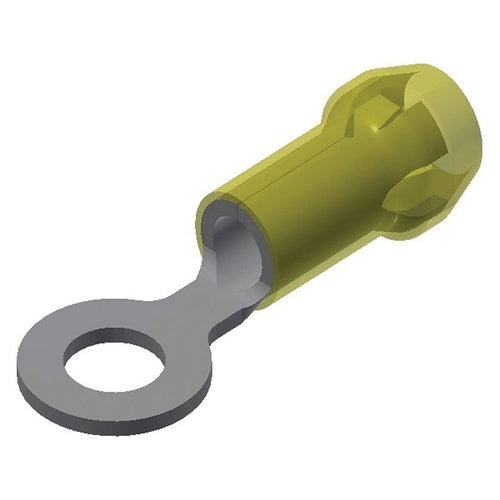

Burndy YAE10NBOX 12-10 Ring Lug

Overview

Burndy YAE10NBOX 12-10 Ring Lug

Product Specifications

• Catalog Description: NYLON RING TERMINAL FOR 12 - 10 AWG.
• Category: Large Terminals & Connectors
• Full Technical Description: Smooth Funnel Entry, Brazed Seam Barrel Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #8 to #10 Stud Size; Nylon Insulated Insulation Type; INSULUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.15 Inch L X 0.38 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 300 V; Wire Strip Length 3/8 Inch; Maximum Insulation Diameter 0.209 Inch; Packaging Type Box; YAE-N Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810564004
• SKU Name: bur yae10nbox

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
