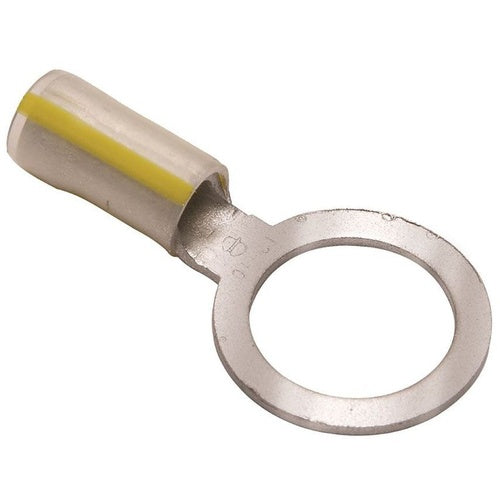

Burndy YAES10K58 Ring Tongue Terminal

Product Specifications

• Catalog Description: RADIATION RESISTANT INSULATED RING TERMINAL FOR 12 - 10 AWG.
• Full Technical Description: Smooth Funnel Entry, Brazed Seam Barrel Type; Yellow Color; 12 AWG Solid/Stranded (Copper) min. Conductor Size; 10 AWG Solid/Stranded (Copper) Max. Conductor Size; -60 to 150 Deg C Temperature Rating; 1/2 Inch Stud Size; Kynar Polyvinylindene Floride Insulated Insulation Type; INSULUG[TM] Brand; RoHS Compatible; Dimension 1.41 Inch L X 0.72 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 600 V; Wire Strip Length 3/8 Inch; Maximum Insulation Diameter 0.21 Inch; YAES-K Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810027097
• SKU Name: bur yaes10k58
