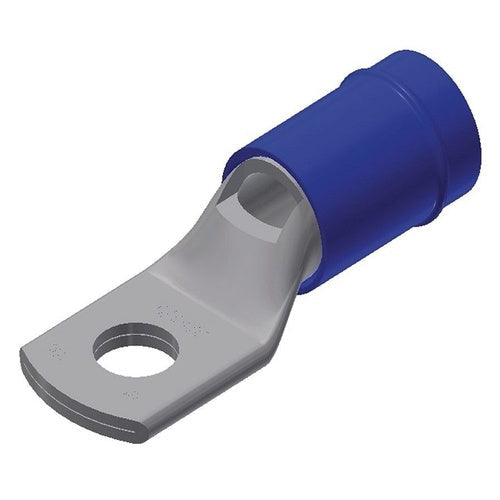

Burndy YAEV6-CL1 Bulk Lug

Overview

Burndy YAEV6-CL1 Bulk Lug

Product Specifications

• UPC: 78181002771
• Temperature Rating: 105 DEG C
• Approval: UL
• Additional Information: ROHS COMPATIBLE; SIZE 1.56 INCH L X 0.48 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; VOLTAGE RATING 300 V; WIRE STRIP LENGTH 1/2 INCH; MAXIMUM INSULATION DIAMETER 0.313 INCH; PACKAGING TYPE BULK
• Catalog Number: YAEV6CL1
• Brand Name: INSULUG[T], BURNDY[R]
• Model: YAEV-L
• Type: SEAMLESS BARREL, DOUBLE THICK TONGUE
• Maximum Conductor Size: 6 AWG STRANDED (COPPER), 6 AWG (AIRCRAFT)
• Color: BLUE
• Insulation Type: NYLON INSULATED
• Stud Size: #8 TO #10
• Catalog Description: COPPER LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, 6 AWG, #8-#10 STUD, INSULATED, SHORT BARREL, TIN PLATED, 600 VOLTS MAX.
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Barrel, Double Thick Tongue Type; Blue Color; 6 AWG Stranded (Copper), 6 AWG (Aircraft) Max. Conductor Size; UL Approval; 105 Deg C Temperature Rating; #8 to #10 Stud Size; Nylon Insulated Insulation Type; INSULUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.56 Inch L X 0.48 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 300 V; Wire Strip Length 1/2 Inch; Maximum Insulation Diameter 0.313 Inch; Packaging Type Bulk; YAEV-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810027714
• SKU Name: bur yaev6cl1
