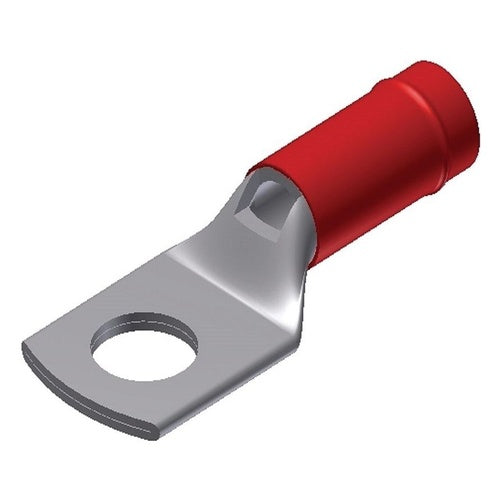

Burndy YAEV8-CL 8Str Lug Bulk

Overview

Burndy YAEV8-CL 8Str Lug Bulk

Product Specifications

• UPC: 78181002773
• Temperature Rating: 105 Deg C
• Approval: UL
• Additional Information: RoHS Compatible; Dimension 1.4 Inch L x 0.41 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch; Maximum Insulation Diameter 0.258 Inch
• Catalog Number: YAEV8CL
• Brand Name: INSULUG[TM]
• Model: YAEV-L
• Type: Seamless Barrel, Double Thick Tongue
• Maximum Conductor Size: 8 AWG Stranded (Copper), 8 AWG (Aircraft)
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: #8 to #10
• Catalog Description: COPPER LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, 8 AWG, #8-#10 STUD, INSULATED, SHORT BARREL, TIN PLATED, 600 VOLTS MAX.
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Barrel, Double Thick Tongue Type; Red Color; 8 AWG Stranded (Copper), 8 AWG (Aircraft) Max. Conductor Size; UL Approval; 105 Deg C Temperature Rating; #8 to #10 Stud Size; Nylon Insulated Insulation Type; INSULUG[TM] Brand; RoHS Compatible; Dimension 1.4 Inch L X 0.41 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch; Maximum Insulation Diameter 0.258 Inch; YAEV-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810027738
• SKU Name: bur yaev8cl
