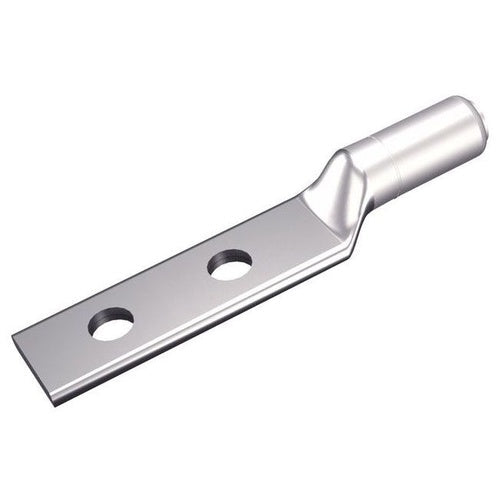

Burndy YAK39A2G2 750Mcm Aluminum Lug

Overview

Burndy YAK39A2G2 750Mcm Aluminum Lug

Product Specifications

• UPC: 78181018735
• Die Index: 608, 722, 786
• Overall Length: 8-1/4 Inch
• Stud Size: 9/16 Inch
• Additional Information: RoHS Compatible
• Catalog Number: YAK39A2G2
• Brand Name: HYLUG[TM]
• Type: Stacking
• Conductor Material: AAC/Aluminum
• Aluminum/Copper Conductor Size: 700 to 750 KCMIL (Aluminum)
• Material: Cast Aluminum
• Number Of Pad Holes: 2 NEMA
• Pad Size: 3-1/4 Inch L x 1-5/8 Inch W x 5/8 Inch Thk
• Catalog Description: AL STACKING TERMINAL LUG, 750 KCMIL(AL), 1.75" SPACING.
• Category: Large Terminals & Connectors
• Full Technical Description: Stacking Type; Cast Aluminum Material; 8-1/4 Inch Overall Length; Aac/Aluminum Conductor Material; 9/16 Inch Stud Size; 608, 722, 786 Die Index; 3-1/4 Inch L X 1-5/8 Inch W X 5/8 Inch Thk Pad Size; 2 NEMA Pad Hole(S); 700 to 750 kcmil (Aluminum) Aluminum/Copper Conductor Size; HYLUG[TM] Brand; RoHS Compatible
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Terminal
• Unspsc: 39121405
• UPC 12 Digit: 781810187357
• SKU Name: bur yak39a2g2
