Overview

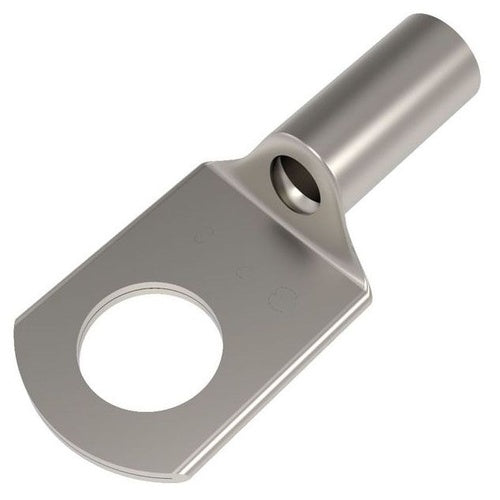

Burndy YAV10BOX 12-10 Ring Lug

Product Specifications

• UPC: 78181054150
• Pad Size: 0.4 Inch Length x 0.38 Inch Width x 0.06 Inch Thickness
• Overall Length: 0.97 Inch
• Stud Size: #8 to #10
• Approval: UL, CSA
• Additional Information: DIMENSION 0.97 INCH LENGTH X 0.38 INCH WIDTH; SEAMLESS TUBULAR CRIMP BARREL; MATERIAL ELECTROLYTIC COPPER
• Catalog Number: YAV10BOX
• Brand Name: HYLUG[TM]
• Model: YAV
• Type: Seamless, Beveled, Heavy Duty, Standard Barrel
• Conductor Material: Copper
• Aluminum/Copper Conductor Size: 10 AWG Solid/Stranded
• Material: Copper
• Number Of Pad Holes: 1
• Catalog Description: CU COMPRESSION TERMINAL CODE CONDUCTOR, BEVELLED ENTRY, 1 HOLE/W/INSPWINDOW, #14-#10(STR) #12-#10(SOL), 600V-35KV, #8-#10 STUD, STANDARD BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless, Beveled, Heavy Duty, Standard Barrel Type; Copper Material; 0.97 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; #8 to #10 Stud Size; 0.4 Inch Length X 0.38 Inch Width X 0.06 Inch Thickness Pad Size; 1 Pad Hole(S); 10 AWG Solid/Stranded Aluminum/Copper Conductor Size; HYLUG[TM] Brand; Dimension 0.97 Inch Length X 0.38 Inch Width; Seamless Tubular Crimp Barrel; Material Electrolytic Copper; YAV Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Terminal
• Unspsc: 39121405
• UPC 12 Digit: 781810541500
• SKU Name: bur yav10box
