Overview

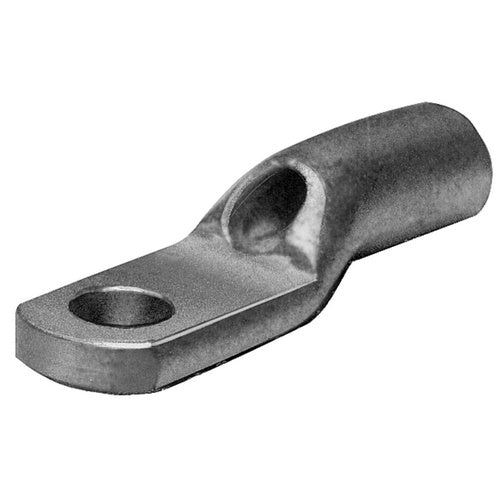

Burndy YAV10L36BOX 12-10 Ring Lug

Product Specifications

• UPC: 78181054155
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Dimension 0.86 Inch L x 0.29 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch
• Catalog Number: YAV10L36BOX
• Brand Name: HYLUG[TM]
• Model: YAV BOX
• Type: Beveled, Heavy Duty
• Minimum Conductor Size: 14 AWG Stranded, 12 AWG Solid/Stranded
• Maximum Conductor Size: 10 AWG Solid/Stranded
• Insulation Type: Non-Insulated
• Stud Size: #8 to #10
• Catalog Description: COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION WINDOW, 12-10 AWG/14 AWG (STR), # 8-10 STUD, SHORT BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled, Heavy Duty Type; 14 AWG Stranded, 12 AWG Solid/Stranded min. Conductor Size; 10 AWG Solid/Stranded Max. Conductor Size; UL, CSA Approval; #8 to #10 Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 0.86 Inch L X 0.29 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch; YAV BOX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810541555
• SKU Name: bur yav10l36box
