Overview

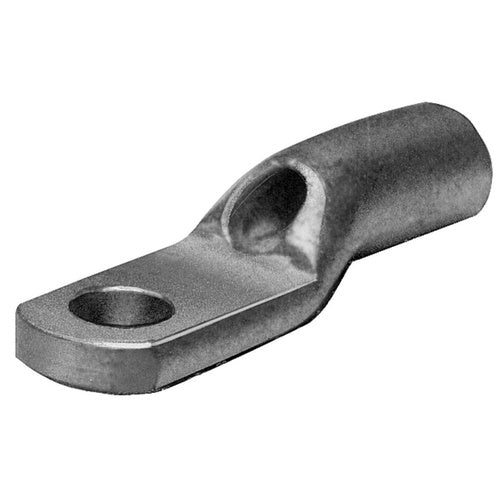

Burndy YAV10T7BOX 12-10 Ring Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, 14-10 AWG (STR.)/12-10 AWG (SOLID), #4-#6 STUD, SHORT BARREL, TIN PLATED.
• Full Technical Description: Beveled, Heavy Duty Type; 14 AWG Stranded, 12 AWG Solid/Stranded min. Conductor Size; 10 AWG Solid/Stranded Max. Conductor Size; UL, CSA Approval; #4 to #6 Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 0.93 Inch L X 0.28 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch; YAV BOX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810541906
• SKU Name: bur yav10t7box
