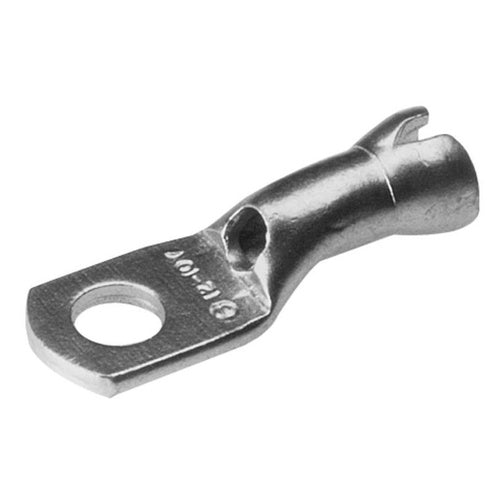

Burndy YAV14HBOX 20-14 Ring Lug

Product Specifications

• Catalog Description: UNINSULATED RING TERMINAL FOR 16 - 14 AWG.
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Barrel, Heavy Duty With Shroud Type; 20 AWG Stranded (Copper) min. Conductor Size; 14 AWG Stranded (Copper) Max. Conductor Size; UL, CSA Approval; #8 to #10 Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 0.95 Inch L X 0.31 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 9/32 Inch; Maximum Insulation Diameter 0.150 Inch; With Shroud; YAV-H BOX Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810542309
• SKU Name: bur yav14hbox
