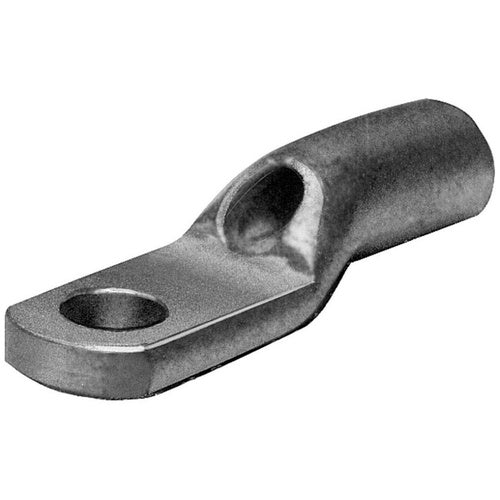

Burndy YAV14T1BOX 20-14 Ring Lug

Product Specifications

• Catalog Description: UNINSULATED RING TERMINAL FOR 16 - 14 AWG.
• Full Technical Description: Beveled, Heavy Duty Type; 20 AWG Solid/Stranded min. Conductor Size; 12 AWG Solid, 14 AWG Stranded Max. Conductor Size; UL, CSA Approval; #6 to #8 Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 0.79 Inch L X 0.31 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 9/32 Inch; YAV BOX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810533505
• SKU Name: bur yav14t1box
