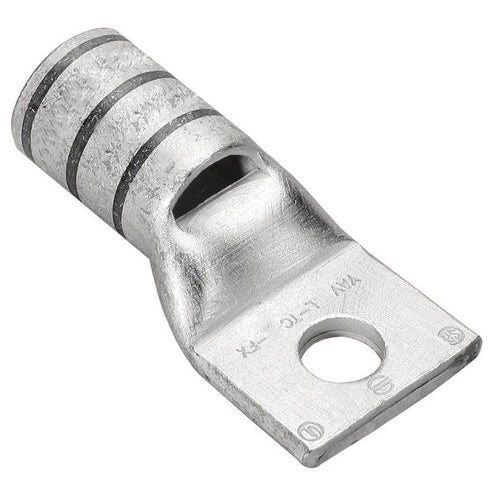

Burndy YAV1CL3BOX 1Awg Ring Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, HEAVY DUTY, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, AN-1 FLEX, 1/2" STUD, SHORT BARREL, TIN PLATED, DIE INDEX: 42
• Full Technical Description: Beveled Entry, Seamless Barrel, Heavy Duty, Double Thick Straight Tongue Type; 1 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 1/2 Inch Stud Size; Non Insulated Insulation Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.97 Inch L X 0.86 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 5/8 Inch; Die Index 42; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; Packaging Type Box; YAV-LBOX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810539903
• SKU Name: bur yav1cl3box
