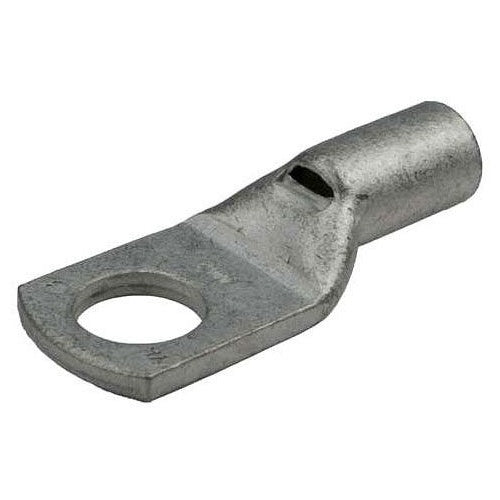

Burndy YAV25L2BOX 1/0AWG Ring Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION WINDOW, AN-1/0 FLEX, 5/16" STUD, SHORT BARREL, ELECTRO-TIN PLATED
• Full Technical Description: Beveled, Heavy Duty Type; 1/0 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 5/16 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 2.03 Inch L X 0.83 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 11/16 Inch; Die Index 43; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L BOX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810539989
• SKU Name: bur yav25l2box
