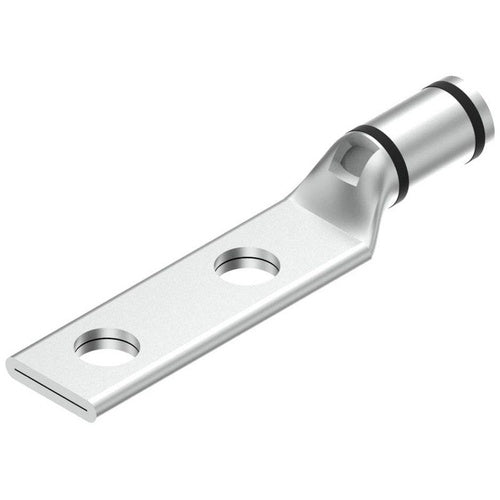

Burndy YAV26L2NTCFX Lug 2/0Flex

Overview

Burndy YAV26L2NTCFX Lug 2/0Flex

Product Specifications

• Catalog Description: 2/0 FLEX G,H,I,K,M,DLO, 2/0 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 13 DIE INDEX.
• Full Technical Description: Electro-Tin Plated Copper Material; Black Color; 4.31 Inch Overall Length; 0.81 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 325/24 Diesel Locomotive Cable, 2/0 AWG Class G/H/I (Weld Flex), 2/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; 13 Die Index; 0.93 Inch W X 0.13 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 13/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YAV-L-2TC-FX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810021781
• SKU Name: bur yav26l2ntcfx
