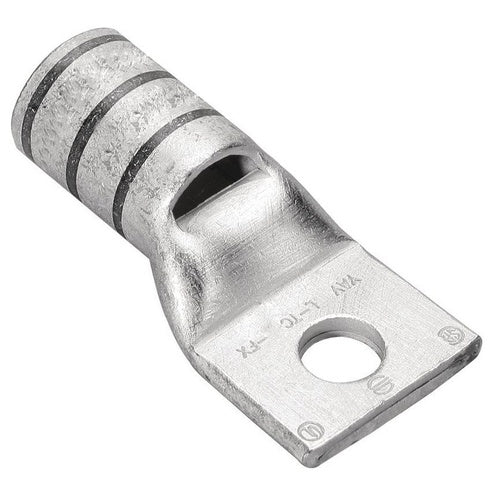

Burndy YAV2CL2BOX 2Awg Ring Lug

Product Specifications

• UPC: 78181053965
• Additional Information: RoHS Compatible; Dimension 1.72 Inch L x 0.69 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 5/8 Inch; Die Index 41; Used On AN Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor
• Catalog Number: YAV2CL2BOX
• Brand Name: HYLUG[TM]
• Model: YAV-L BOX
• Type: Beveled, Heavy Duty
• Maximum Conductor Size: 2 AWG (Aircraft/Flex)
• Insulation Type: Non-Insulated
• Stud Size: 5/16 Inch
• Approval: UL, CSA
• Catalog Description: COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, AN-2 FLEX, 5/16" STUD, SHORT BARREL, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Beveled, Heavy Duty Type; 2 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 5/16 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 1.72 Inch L X 0.69 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 5/8 Inch; Die Index 41; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L BOX Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810539651
• SKU Name: bur yav2cl2box
