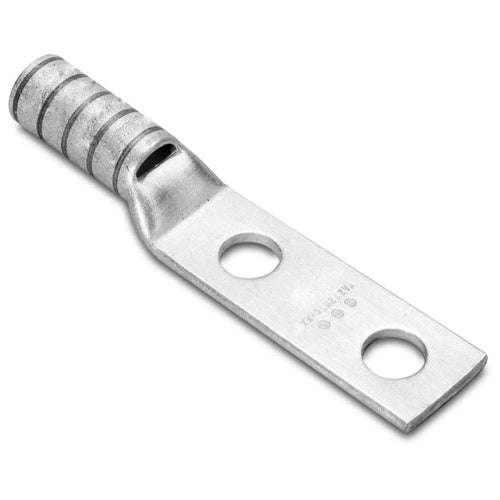

Burndy YAV2CL2TC38FX 2-Hole Terminal Lug

Product Specifications

• UPC: 78181002224
• Pad Size: 0.68 Inch W x 0.1 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 Inch
• Stud Size: 3/8 Inch
• Color: Brown
• Die Index: 10
• Material: Electro-Tin Plated Copper
• Overall Length: 2.82 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 11/16 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YAV2CL2TC38FX
• Brand Name: HYLUG[TM]
• Model: YAV-L-2TC-FX
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 125/24 to 150/24 Diesel Locomotive Cable, 2 AWG Class G/H/I (Weld Flex), 2 AWG Solid/Stranded
• Barrel Type: Short, Standard, Straight
• Barrel Length: 0.63 Inch
• Catalog Description: 2 FLEX G,H,I,K,M,DLO, 2 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Brown Color; 2.82 Inch Overall Length; 0.63 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 125/24 to 150/24 Diesel Locomotive Cable, 2 AWG Class G/H/I (Weld Flex), 2 AWG Solid/Stranded Conductor Size; 3/8 Inch Stud Size; 10 Die Index; 0.68 Inch W X 0.1 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Short, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 11/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YAV-L-2TC-FX Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810022245
• SKU Name: bur yav2cl2tc38fx
